ctre::phoenix6::hardware::ParentDevice Class Referenceabstract

Parent class for all devices. More...

#include <ctre/phoenix6/hardware/ParentDevice.hpp>

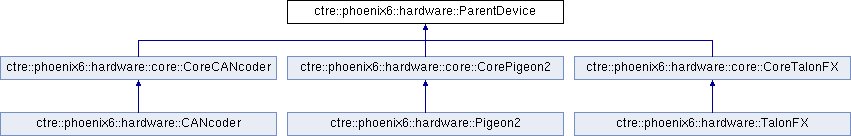

Inheritance diagram for ctre::phoenix6::hardware::ParentDevice:
ctre::phoenix6::hardware::core::CoreCANcoder ctre::phoenix6::hardware::core::CorePigeon2 ctre::phoenix6::hardware::core::CoreTalonFX ctre::phoenix6::hardware::CANcoder ctre::phoenix6::hardware::Pigeon2 ctre::phoenix6::hardware::TalonFX

Public Member Functions

 ParentDevice (int deviceID, std::string model, std::string canbus)

int GetDeviceID () const

const std::string & GetCANBus () const

std::shared_ptr< const controls::ControlRequest > GetAppliedControl () const
 Get the latest applied control. More...

std::shared_ptr< controls::ControlRequest > GetAppliedControl ()
 Get the latest applied control. More...


Static Public Attributes

static constexpr double kDefaultControlRatePeriodsSec = 0.010


Protected Member Functions

virtual void ReportIfTooOld ()=0

virtual ctre::phoenix::StatusCode SetControlPrivate (controls::ControlRequest &request)

template<typename T >
StatusSignal< T > & LookupStatusSignal (uint16_t spn, std::string signalName, bool reportOnConstruction)

template<typename T >
StatusSignal< T > & LookupStatusSignal (uint16_t spn, uint16_t mapper_iter, std::function< std::map< int, StatusSignal< T > >()> map_filler, std::string signalName, bool reportOnConstruction)

template<typename T , typename U >
StatusSignal< T > LookupDimensionlessStatusSignal (uint16_t spn, std::string signalName)
 Returns a unitless version of the StatusSignal by value. More...

void ReportIfTooOld (int minMajor, int minMinor, int minBugfix, int minBuild)


Protected Attributes

DeviceIdentifier deviceIdentifier


Detailed Description

Parent class for all devices.

Constructor & Destructor Documentation

◆ ParentDevice()

ctre::phoenix6::hardware::ParentDevice::ParentDevice ( int  deviceID,
std::string  model,
std::string  canbus
)
inline

Member Function Documentation

◆ GetAppliedControl() [1/2]

std::shared_ptr< controls::ControlRequest > ctre::phoenix6::hardware::ParentDevice::GetAppliedControl ( )
inline

Get the latest applied control.

This returns a shared pointer to avoid becoming a dangling pointer due to parallel operations changing the underlying data. Make sure to save the shared_ptr to a variable before chaining function calls, otherwise the data may be freed early.

Returns
Latest applied control

◆ GetAppliedControl() [2/2]

std::shared_ptr< const controls::ControlRequest > ctre::phoenix6::hardware::ParentDevice::GetAppliedControl ( ) const
inline

Get the latest applied control.

This returns a shared pointer to avoid becoming a dangling pointer due to parallel operations changing the underlying data.

Returns
Latest applied control

◆ GetCANBus()

const std::string & ctre::phoenix6::hardware::ParentDevice::GetCANBus ( ) const
inline
Returns
name of the CAN bus this device is on.

◆ GetDeviceID()

int ctre::phoenix6::hardware::ParentDevice::GetDeviceID ( ) const
inline
Returns
the device ID of this device [0,62].

◆ LookupDimensionlessStatusSignal()

template<typename T , typename U >
StatusSignal< T > ctre::phoenix6::hardware::ParentDevice::LookupDimensionlessStatusSignal ( uint16_t  spn,
std::string  signalName
)
inlineprotected

Returns a unitless version of the StatusSignal by value.

Do not store the result in a reference.

◆ LookupStatusSignal() [1/2]

template<typename T >
StatusSignal< T > & ctre::phoenix6::hardware::ParentDevice::LookupStatusSignal ( uint16_t  spn,
std::string  signalName,
bool  reportOnConstruction
)
inlineprotected

◆ LookupStatusSignal() [2/2]

template<typename T >
StatusSignal< T > & ctre::phoenix6::hardware::ParentDevice::LookupStatusSignal ( uint16_t  spn,
uint16_t  mapper_iter,
std::function< std::map< int, StatusSignal< T > >()>  map_filler,
std::string  signalName,
bool  reportOnConstruction
)
inlineprotected

◆ ReportIfTooOld() [1/2]

virtual void ctre::phoenix6::hardware::ParentDevice::ReportIfTooOld ( )
protectedpure virtual

◆ ReportIfTooOld() [2/2]

void ctre::phoenix6::hardware::ParentDevice::ReportIfTooOld ( int  minMajor,
int  minMinor,
int  minBugfix,
int  minBuild
)
protected

◆ SetControlPrivate()

virtual ctre::phoenix::StatusCode ctre::phoenix6::hardware::ParentDevice::SetControlPrivate ( controls::ControlRequest &  request)
protectedvirtual

Reimplemented in ctre::phoenix6::hardware::TalonFX.

Member Data Documentation

◆ deviceIdentifier

DeviceIdentifier ctre::phoenix6::hardware::ParentDevice::deviceIdentifier
protected

◆ kDefaultControlRatePeriodsSec

constexpr double ctre::phoenix6::hardware::ParentDevice::kDefaultControlRatePeriodsSec = 0.010
staticconstexpr
The documentation for this class was generated from the following file:
